Laser Etching Machine for WL HDLP Adjuster Caps

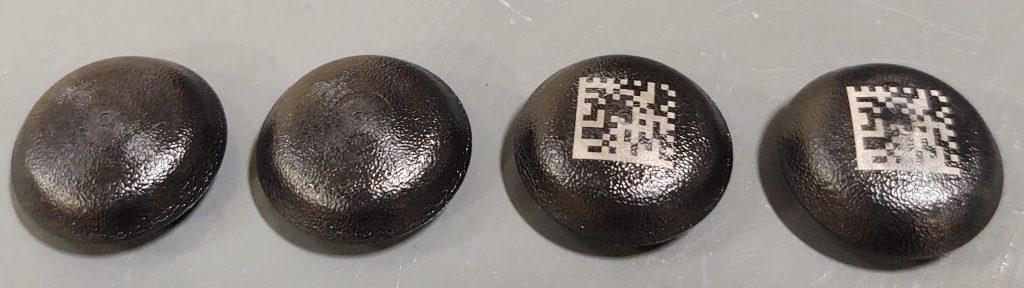

Automated Solutions Inc. offers a fully integrated Laser Etching Machine designed specifically for etching 2D barcodes onto WL HDLP Adjuster Caps. Engineered for performance, precision, and compact footprint, this system is ideal for high-quality, traceable part identification in automotive manufacturing environments. With a cycle rate of 12 parts per minute or less, the laser etching system combines automated part feeding, barcode marking, and in-line verification into a single operator-friendly workstation.

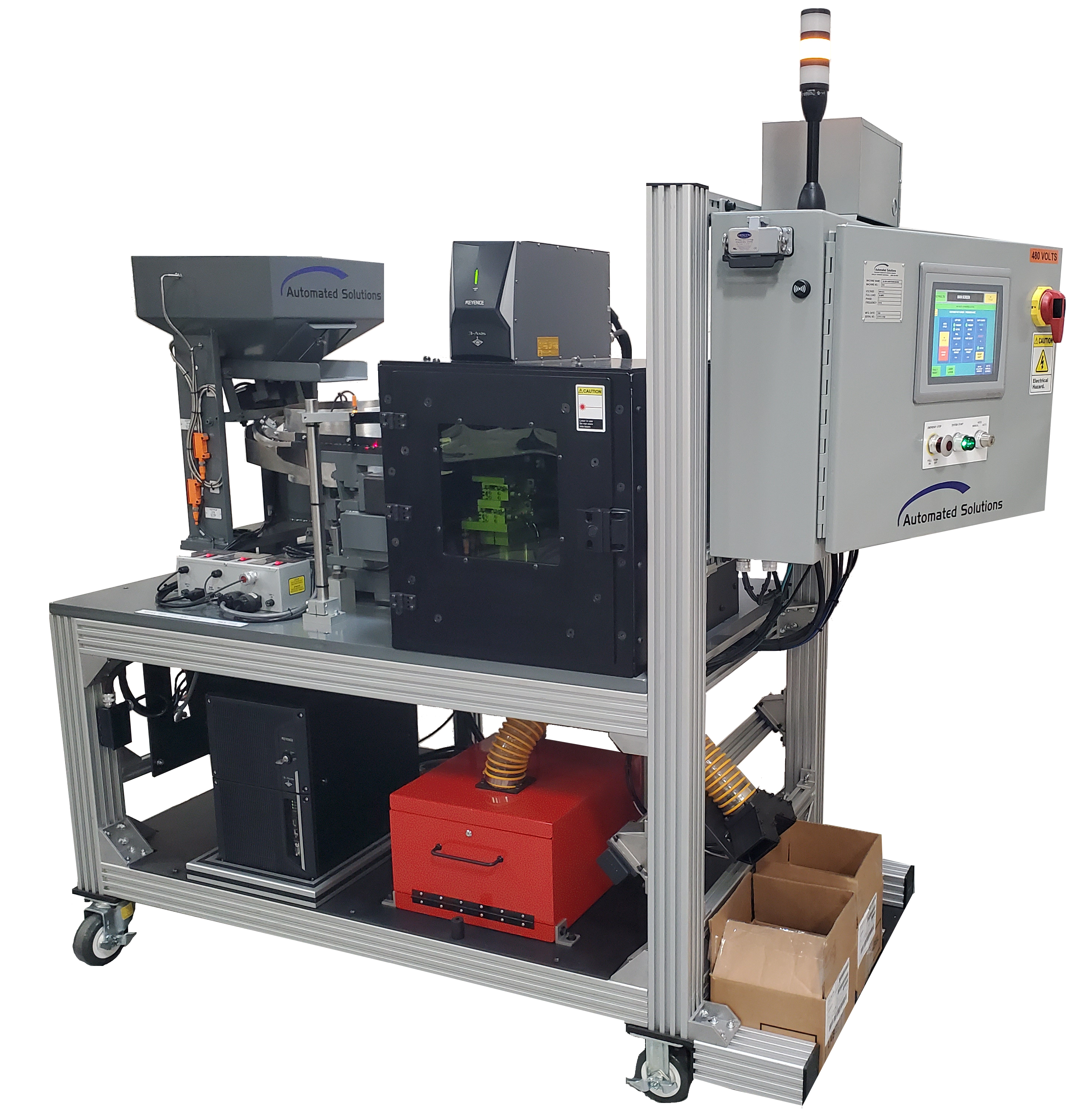

The machine features a rugged 3.5″ x 3.5″ extruded aluminum frame, optimized to fit within a 3′ x 4′ envelope for plant floor flexibility. The system integrates a Keyence MD-X1000 3-Axis Hybrid Laser Marker along with a Keyence SR-2000 barcode reader for real-time 2D code verification. The complete solution includes a Feed Rite vibratory bowl feeder, escapement with three-position indexing, diverter tubes for good and bad parts, and a compact dual-bin filling system to handle finished goods with automatic box switching and part counters. OSHA-compliant sound levels are maintained with sound-attenuated housings and a baffled fume extractor system.

Additional features include a custom-built or ME2-M laser safety enclosure, a user-friendly HMI interface for part count monitoring, and integrated sensors for part presence, hopper level, and escapement verification. Built with safety, reliability, and maintainability in mind, this laser etching machine offers a turnkey solution for high-volume, error-free barcode marking. From part orientation to barcode verification and smart part sorting, this system delivers unmatched efficiency and traceability for modern manufacturing lines.
